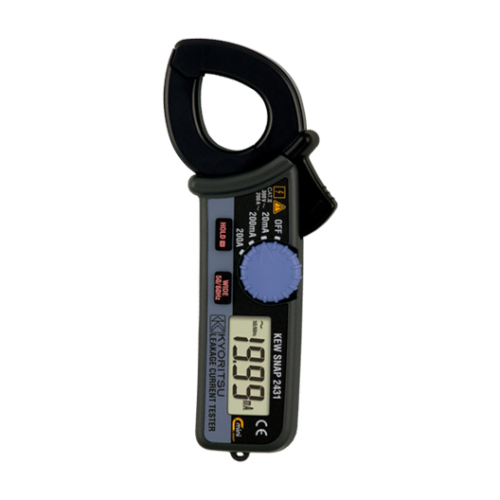

LEAKAGE CLAMP METER
MODEL 2431
• Frequency Selector Switch to eliminate the effect of harmonics
• Auto power-off function
• Rotary switch for easy one finger power on and range selection
• Minimum resolution 0.01mA
• Auto power-off function
• Rotary switch for easy one finger power on and range selection
• Minimum resolution 0.01mA
| AC A (50/60Hz) | 20/200mA/200A ±3%rdg±5dgt (20/200mA/100A) ±5%rdg±5dgt (200A) |
|---|---|
| AC A (WIDE) | 20/200mA/200A ±2%rdg±4dgt [50/60Hz] (20/200mA/0 - 100A) ±5%rdg±6dgt [40 - 400Hz] (20/200mA/0 - 100A) ±5%rdg±4dgt [50/60Hz] (100.1 - 200A) |
| Conductor size | Ø24mm max. |
| Frequency response | 40 - 400Hz |
| Effect of external stray magnetic field Ø15mm 100A | 10mA AC max. |
| Safety Standard | IEC 61010-1 CAT III 300V IEC 61010-2-032 |
| Power source | LR44 (1.5V)× 2 |
| Dimension | 149(L)× 60(W) × 26(D)mm |
| Weight | Approx. 120g |
| Accessories | 9090 (Carrying Case) LR44 × 2 Instruction Manual |
