Specification
| AC A | 40/300A ±1%rdg±4dgt [50/60Hz] (0 to 40A) ±2.5%rdg±4dgt [20Hz to 1kHz] (0 to 40A) ±1.5%rdg±4dgt [50/60Hz] (20 to 200A) ±2.5%rdg±4dgt [20Hz to 1kHz] (20 to 200A) ±3.5%rdg [50/60Hz] (200 to 300A) ±4%rdg [20Hz to 1kHz] (200 to 300A) |
|---|---|
| DC A | 40/300A ±1%rdg±4dgt (0 to ±40A) ±1.5%rdg±4dgt (±20 to ±200A) ±3%rdg (±200 to ±300A) |
| Conductor size | Ø24mm max. |
| Frequency response | DC, 20Hz to 1kHz |
| Safety Standard | IEC 61010-1 CAT III 300V IEC 61010-2-032 |
| Power source | LR44 (1.5V) × 2 |
| Dimension | 147(L) × 59(W) × 25(D)mm |
| Weight | Approx. 100g |

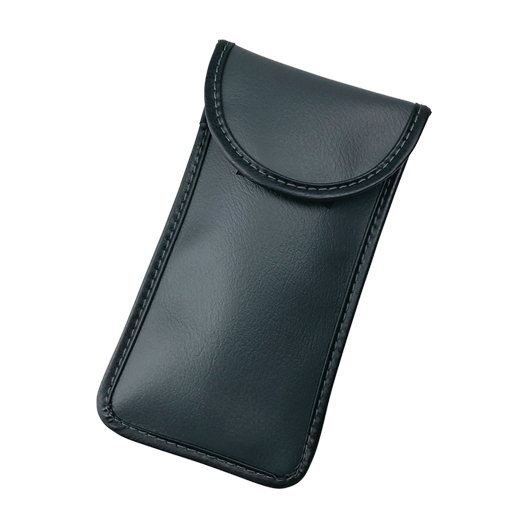

| Accessories | 9090 (Carrying Case) LR44 × 2 Instruction Manual |
