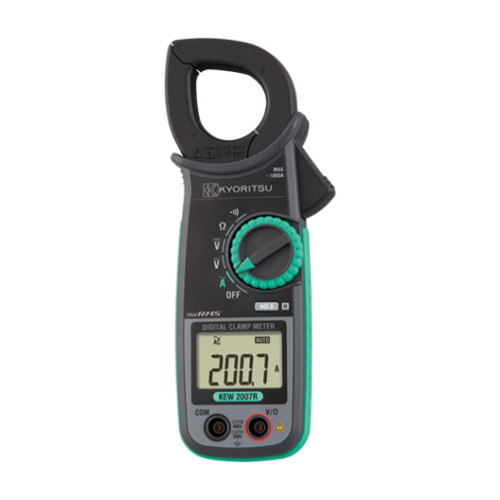

AC DIGITAL CLAMP METER

KEW 2007R

KEW 2007R
CE
• Fully Safety jaw
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.1A resolution
• Accurate reading with True RMS 600/1000A auto-ranging
• Long battery life
• Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
  • TRUE RMS
  • φ33
  • MAX1000A
  • ACA
  • DCACV
  • Resistance
  • Continuitybuzzer
  • DATAHOLD
  • AutoPowerSave
AC A 600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 - 65Hz]
±2.0%rdg±4dgt [40 - 400Hz]
AC V 600.0V
±1.2%rdg±3dgt [45 - 65Hz]
±1.5%rdg±4dgt [40 - 400Hz]
DC V 600.0V
±1.2%rdg±3dgt
Ω 600.0Ω/6.000kΩ (Auto-ranging)
±1.3%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6.000kΩ)
Continuity buzzer 600Ω (Buzzer sounds below 90Ω)
Conductor size φ33mm max.
Applicable standards IEC 61010-1 CAT IV 300V / CAT III 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)
Power source R03/LR03 (AAA) (1.5V) × 2
Continuous measuring time Approx.170 hours (when R03 is used)
(Auto power save : Approx. 10 minutes)
Dimension 204(L) × 81(W) × 36(D)mm
Weight Approx. 220g (including batteries)
Accessories 7066A (Test leads)
9079 (Carrying case)
R03 (AAA) × 2,
Instruction Manual
