HIGH VOLTAGE INSULATION TESTER

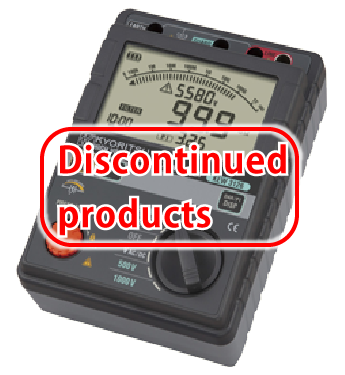

KEW 3126

Discontinued products
KEW 3126
CE
AutoDischarge
Discontinued products
• Short-Circuit Current up to 5mA
• Wide range measurements from 500V to 5000V and up to 1TΩ
• Large digital display with Bar Graph indication and white LED back light
• Polarization Index measurement (PI), Dielectric Absorption Ratio (DAR)
• Filter function reduces noise interference for obtaining stable measurement
• Indication of Output voltage and Discharge voltage
• Auto-discharge function and Output voltage warning function
• Auto power off and Battery Indicator
• Safety standard IEC 61010-1 CAT III 600V
  • DCACV
  • Backlight
  • AutoPowerOff
  • 500V
  • 1000V
  • 2500V
  • 5000V

Insulation resistance

Range 500V 1000V 2500V 5000V
Accuracy 0.0 - 99.9MΩ
100 - 999MΩ
0.0 - 99.9MΩ
100 - 999MΩ
1.00 - 1.99GΩ
0.0 - 99.9MΩ
100 - 999MΩ
1.00 - 9.99GΩ
10.0 - 99.9GΩ
0.0 - 99.9MΩ
100 - 999MΩ
1.00 - 9.99GΩ
10.0 - 99.9GΩ
100 - 1000GΩ
(1TΩ)
±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt
±20%rdg
(100GΩ or more)
Short circuit current Max. 5mA
Rated test Current 1mA to 1.2mA
at 0.5MΩ load
1mA to 1.2mA
at 1MΩ load
1mA to 1.2mA
at 2.5MΩ load
1mA to 1.2mA
at 5MΩ load
Open circuit voltage 500VDC
+30%
-0%
1000VDC
+20%
-0%
2500VDC
+20%
-0%
5000VDC
+20%
-0%
Maximum display 999 Counts (1000 counts only at 1000GΩ)
Current consumption 1000mA approx. (During measurement)

Voltage measurement

Measuring range 30 - 600V AC/DC (50/60Hz)
Accuracy ±2%rdg±3dgt

Insulation resistance

Test voltage 500/1000/2500/5000V
Measuring ranges 0.0 - 99.9MΩ, 100 - 999MΩ (500V)
0.0 - 99.9MΩ, 100 - 999MΩ, 1.00 - 1.99GΩ (1000V)
0.0 - 99.9MΩ, 100 - 999MΩ, 1.00 - 9.99GΩ, 10.0 - 99.9GΩ (2500V)
0.0 - 99.9MΩ, 100 - 999MΩ, 1.00 - 9.99GΩ, 10.0 - 99.9GΩ, 100 - 1000GΩ (1TΩ) (5000V)
Accuracy ±5%rdg±3dgt (500/1000/2500V)
±5%rdg±3dgt, ±20%(100GΩ or more) (5000V)
Short circuit current Max. 5mA
Rated test current 1mA to 1.2mA at 0.5MΩ load (500V)
1mA to 1.2mA at 1MΩ load (1000V)
1mA to 1.2mA at 2.5MΩ load (2500V)
1mA to 1.2mA at 5MΩ load (5000V)
Open circuit voltage 500VDC+30%, -0% (500V)
1000VDC+20%, -0% (1000V)
2500VDC+20%, -0% (2500V)
5000VDC+20%, -0% (5000V)
Maximum display 999 Counts (1000 counts only at 1000GΩ)
Current consumption 1000mA approx. (During measurement)

Voltage measurement

Measuring ranges 30 - 600V
AC/DC
(50/60Hz)
Accuracy ±2%rdg
±3dgt
Maximum display 630 Counts
Current consumption 110mA approx.

General

Applicable standards IEC 61010-1 CAT III 600V Pollution degree 2
IEC 61010-031, IEC 61326
Power source DC12V : LR14×8 pcs.
Dimension 205(L) × 152(W) × 94(D)mm
Weight 1.8kg approx.
Accessories 7165A (Line probe), 7224A (Earth cord), 7225A (Guard cord)
8019 (Hook type prod), 9159 (Hard case)
LR14 (Alkaline battery size C) × 8, Instruction manual
Optional Accessories 7168A (Line probe with alligator clip)
7253 (Longer Line probe with alligator clip)
8302 (Adaptor for recorder)
